Custom builds, restorations, and upgrades
← Swipe for more →
-

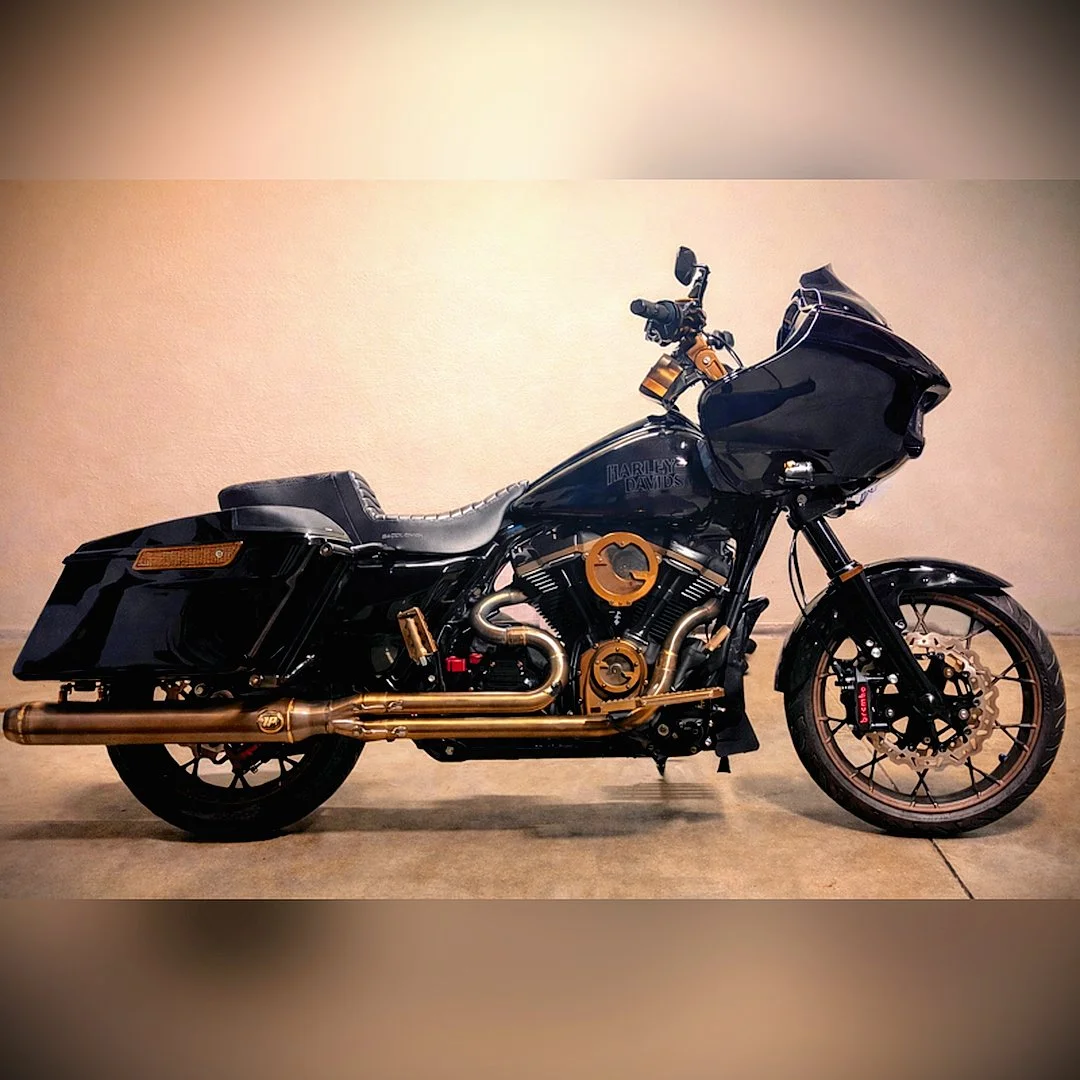

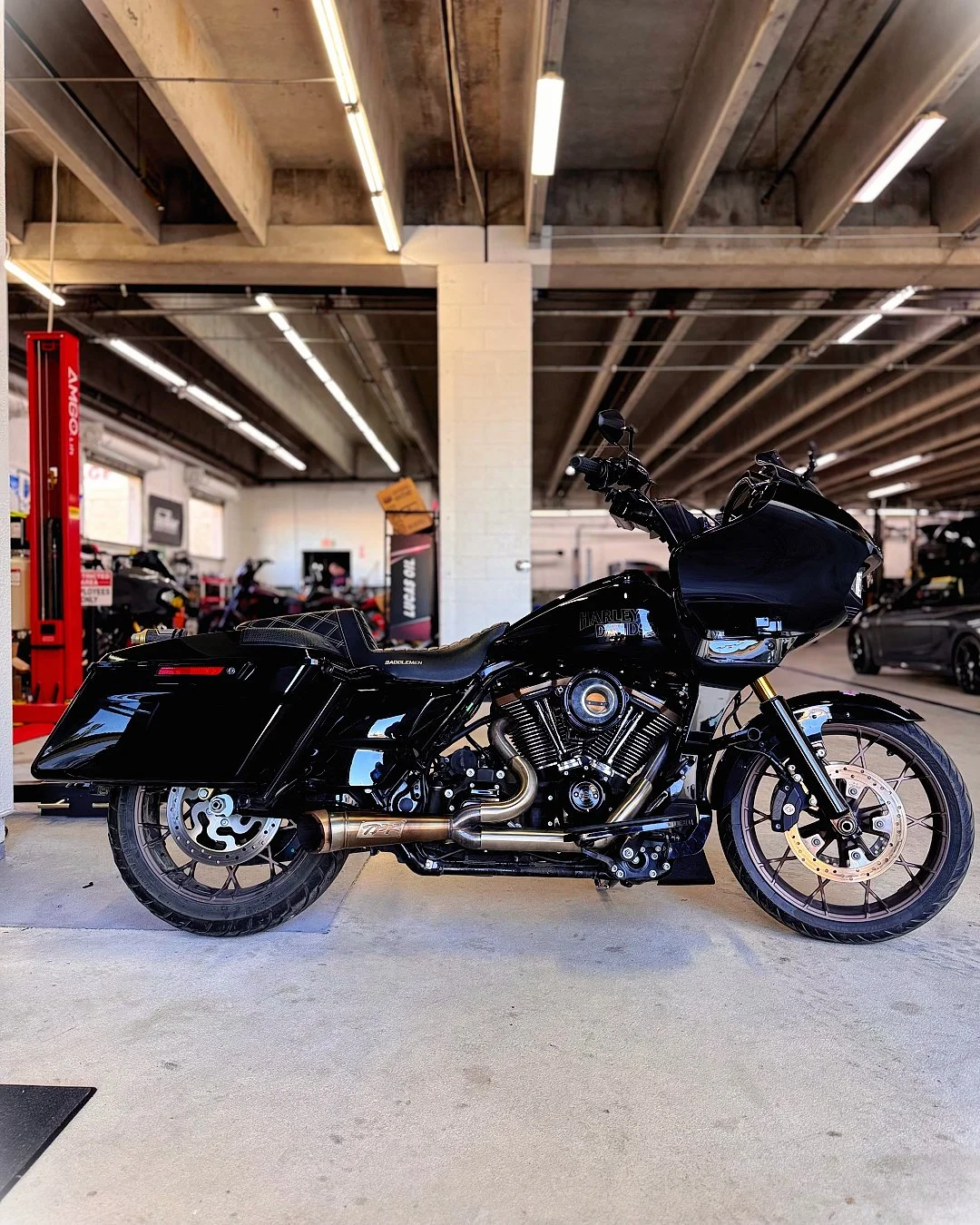

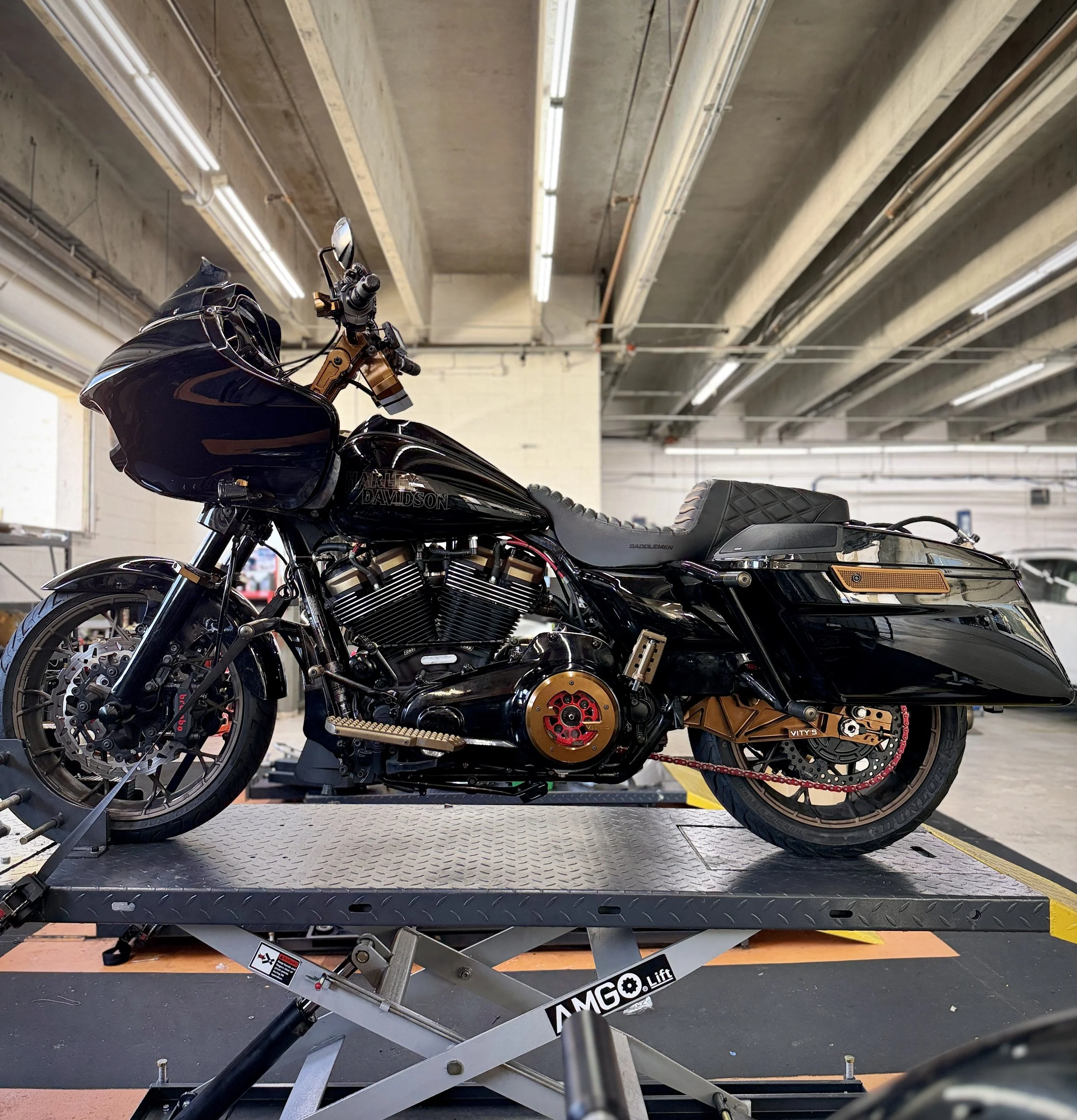

2022 Harley Davidson Road Glide
✔️ GP Suspension 25mm 2” over cartridge kit, DLC coated 2” over tubes + full fork rebuild
✔️ 1” lift block on Öhlins rear suspension to match
✔️ S&S 128” Big Bore kit (M8)
✔️ Daytona M8 fuel injectors (6.2g set)
✔️ Santoro Not Yo Daddy’s crash bar + bag guards (black)
✔️ Kicker lids 6x9 rear bag audio + upgraded front speakers
✔️ Rekluse APEX clutch + basket (M8)
✔️ S&S 550 cam, plate oil pump and hydraulic lifters
S&S adjustment pushrods
✔️ Fuel Moto Power Vision Custom Tune
✔️ Custom exhaust bracket to clear 14” Öhlins rear shocks
✔️ Dakota Digital gauges throughout
✔️ Custom final suspension setup and tuning -

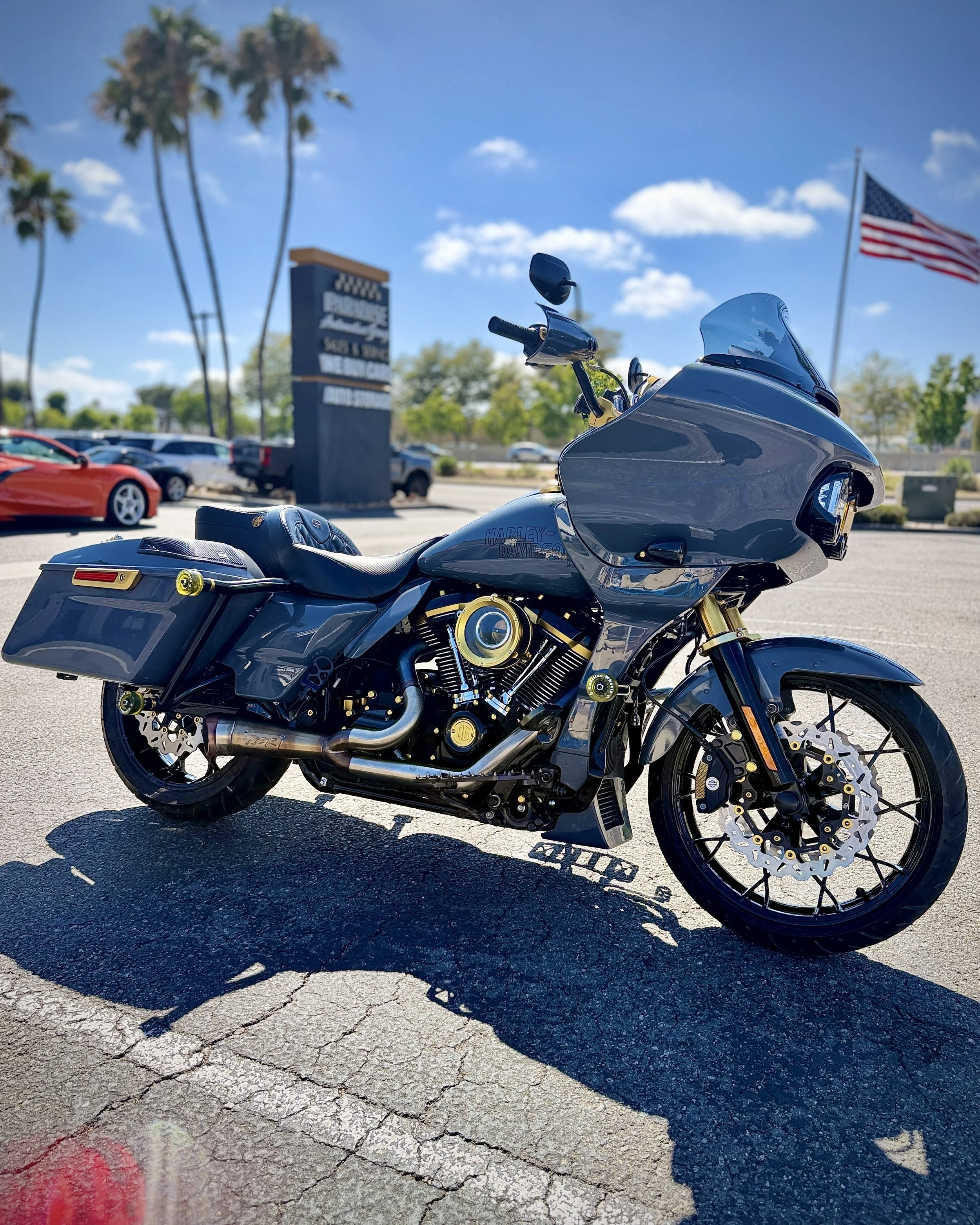

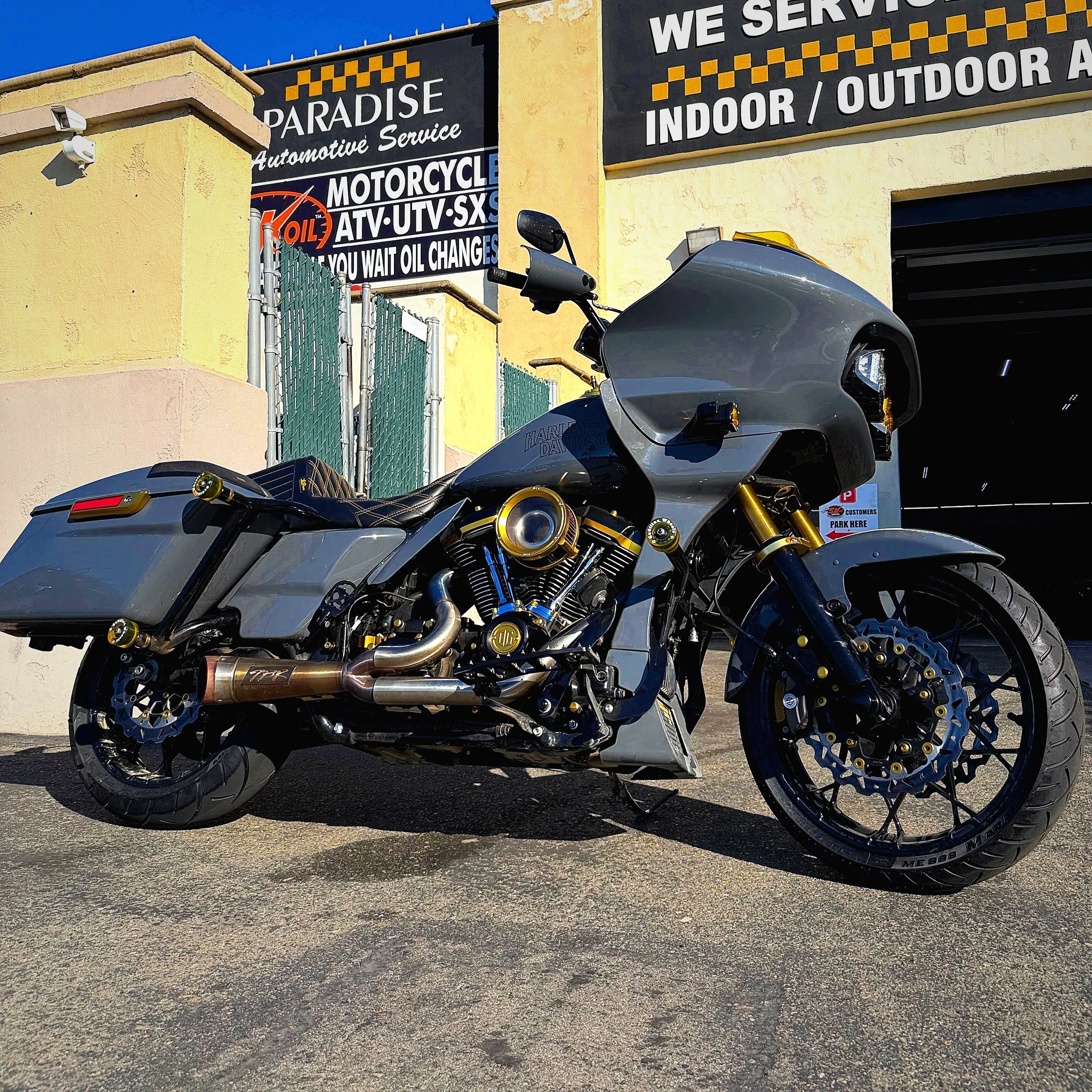

2022 Harley Davidson Road Glide ST
✓ S&S cam chest kit , oil pump & hydraulic cam chain tensioner
✓474 Rocket cams
✓ Power Vision install & custom tune
✓ Handlebar risers
✓ Wiring extensions for bars -
2022 Harley Davidson Road Glide ST
✓ S&S cam chest kit , oil pump & hydraulic cam chain tensioner
✓474 Rocket cams
✓ Power Vision install & custom tune
✓ Handlebar risers
✓ Wiring extensions for bars -
Custom 2000 Harley Davidson Dyna (originally a Wide Glide)
✔️ Completely rewired and updated relays and fuses
✔️ Gear driven cams
✔️ Custom made high mounted rear fender with integrated license plate frame with all in one LED signals
✔️ Custom made exhaust and brackets
✔️ Chain conversion with custom tensioner
✔️ Custom made high mount - quick detach mounts for Leather Pro mini saddlebags
✔️ Custom shaped and mounted quarter fairing
✔️ 7/8” bar conversion with Brembo master cylinder, custom made clutch and throttle cables with Pro Taper clutch lever and throttle setup, custom CRG blindsight mirror install, adjustable levers, custom made mini switches
✔️ Mid control conversion with TC Bros kit and inner primary cover modification for shift lever shaft Custom made passenger peg mounts to accommodate upswept muffler
✔️ Custom made dash pad and tank risers
✔️ Custom led lighting and brackets/ frames through out
✔️ Swapped wide glide 41mm front end for +2” late model dyna 49mm front setup (narrow triple trees)
✔️ Entre bike was stripped down and sent to powder coat and paint
✔️ all painted parts Reassembled and installed with new seals, bearings and gaskets
✔️ Mikuni HSR install and tune
✔️ Run out checked and pushrods adjusted
✔️ Suspension work and shock install
✔️ New EBC brake rotors and pads
✔️ Intake install
-

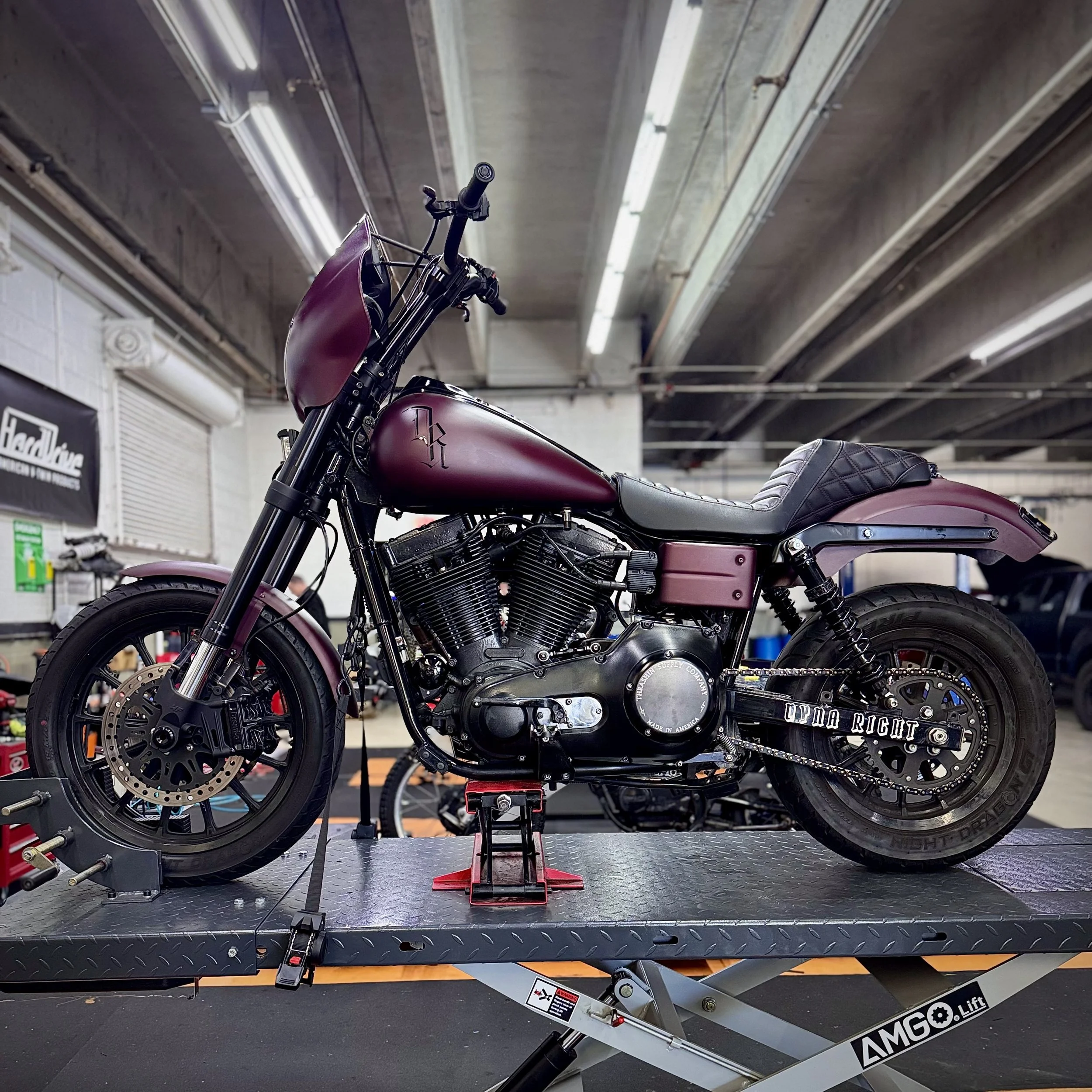

2005 Harley DAvidson Dyna
✓ FEULING HP+ conversion camplate hydraulic cam chain tensioner kit with billet oil pump, HP+ lifters, and FEULING 525 REAPER conversion chain drive camshafts
✓ Top end rebuilt (stock 88) – valves, seals, and springs replaced and shimmed for cam and lifter setup
✓ BAKER DD6 Direct Drive 6-Speed transmission swap with 28-tooth compensator sprocket and speedometer recalibration
✓ Transmission completely rebuilt with BAKER Builders Kit upgraded bearings and seals
✓ Primary drive rebuilt with upgraded seals and bearings, Barnett Scorpion lock-up clutch, easy-pull ramps, and 2-finger clutch lever
✓ Chain drive conversion with Supersprox Stealth sprocket and custom chain tensioner
✓ Custom front suspension and triple clamps with optimized rake and trail
✓ WP Suspension 48mm inverted front end, fully adjustable, re-valved, and custom sprung for the build
✓ Brembo braking system – radial-mounted twin front calipers and oversized front master cylinder
✓ K-Tech Razor rear suspension (14”) – custom-built, fully adjustable height, rebound, compression, and damping
✓ Kinetic Structures wire-mesh engine mounts front and rear to eliminate wobble and stabilize engine-to-frame connection
✓ Stealth 2-into-1 performance exhaust
✓ Arlen Ness Big Sucker intake
✓ Power Commander ECU with custom dyno tune after full build
✓ High-output fuel pump and fuel filter, Accel Super Coil, new spark plugs and wires
✓ New stator, regulator, starter with backup push-button, and 500 CCA lithium battery
✓ Converted 13-spoke wheels with Vulcan Works bearing conversions and Pirelli Night Dragon tires
✓ Custom internally wired 1-1/8” handlebars and risers, low-profile controls, and adjustable front brake lever
✓ Custom formed front clamshell fairing with storage bag and rear-view 180° camera system
✓ Custom rear fender and removable Thrashin saddlebags with molded ABS mounts to prevent sagging
✓ Dakota Digital LED speedometer and LED fuel gauge
✓ Custom LED lighting throughout – headlight, switch-activated light bar, signals, and plate light
✓ Custom paint – TCP Burgundy Hot Rod Flatz (flat matte satin) with satin black
✓ Saddlemen 2-up seat with custom paint-matched stitching
-

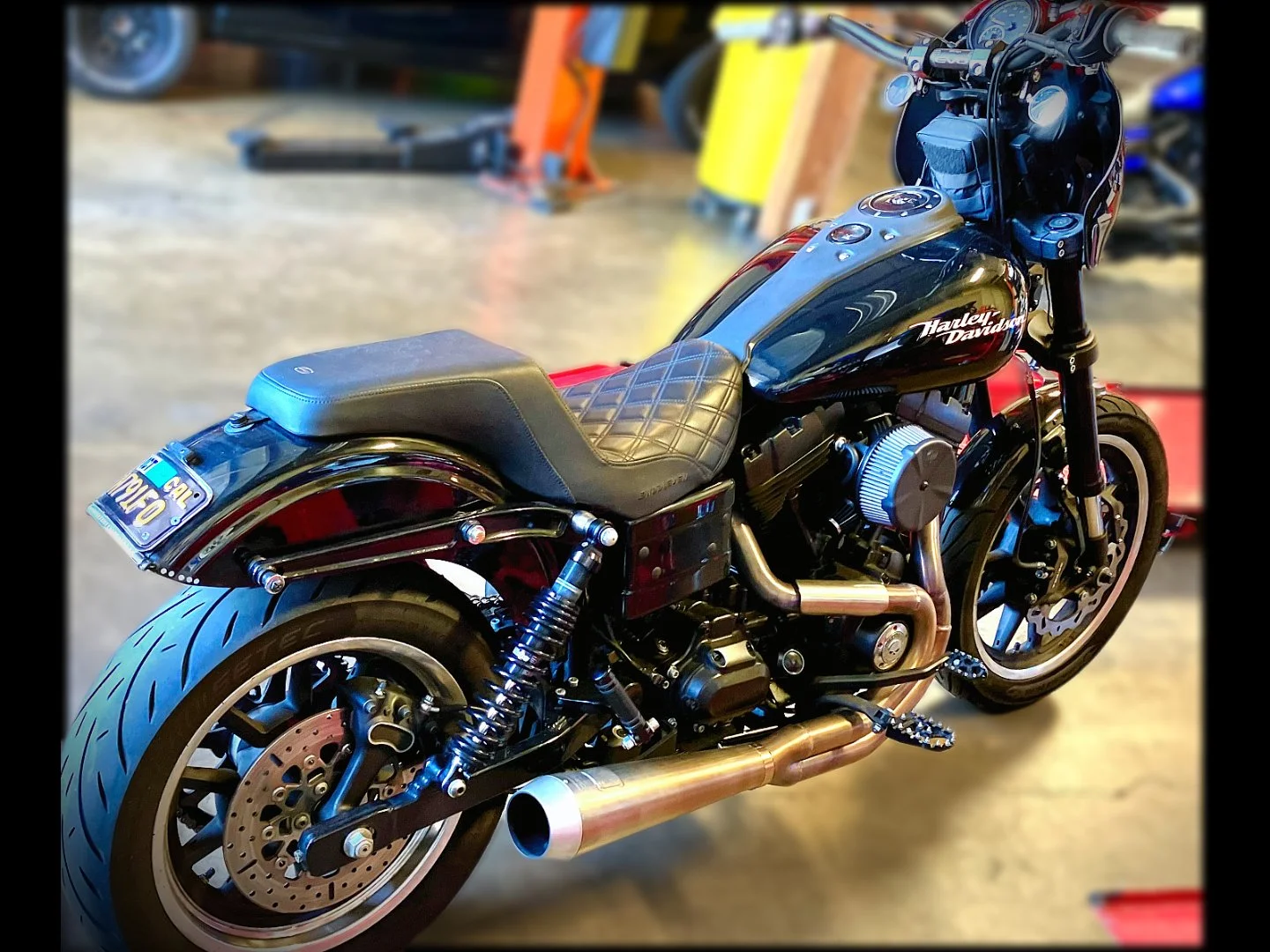

2010 Harley Davidson Dyna
✔️ Custom rims and wheels
✔️ GigaCycle Garage inverted front end kit install
✔️ Bassani full exhaust
✔️ Intake and tune
✔️ Custom formed and mounted front fairing and LED headlight with hi-beam light bar
✔️ Motor work: Fueling Parts cams, cam plate, oil pump with S&S big bore, valves & springs, lifters and adjustable push rods
✔️ K-tech Razor 14.5” rear shocks
✔️ Chain conversion with custom tensioner and Supersprox rear sprocket
✔️ Saddleman seat
✔️ Barnett Scorpion lock-up clutch and basket
✔️ Galfer rotors front and rear
✔️ Tc bros mid controls
✔️ Kinetic Structures wire mesh engine mounts
✔️ Custom shaped rear fender with internally mounted license plate and rear LED lights
✔️ Internally wired risers converted to run 1 1/8” ODI dirt bike bars and custom controls, Brembo 7/8” front master cylinder and adjustable lever, Pro Taper adjustable easy pull two finger clutch setup
✔️ Dakota Digital Speedo install with custom mid riser mount
-

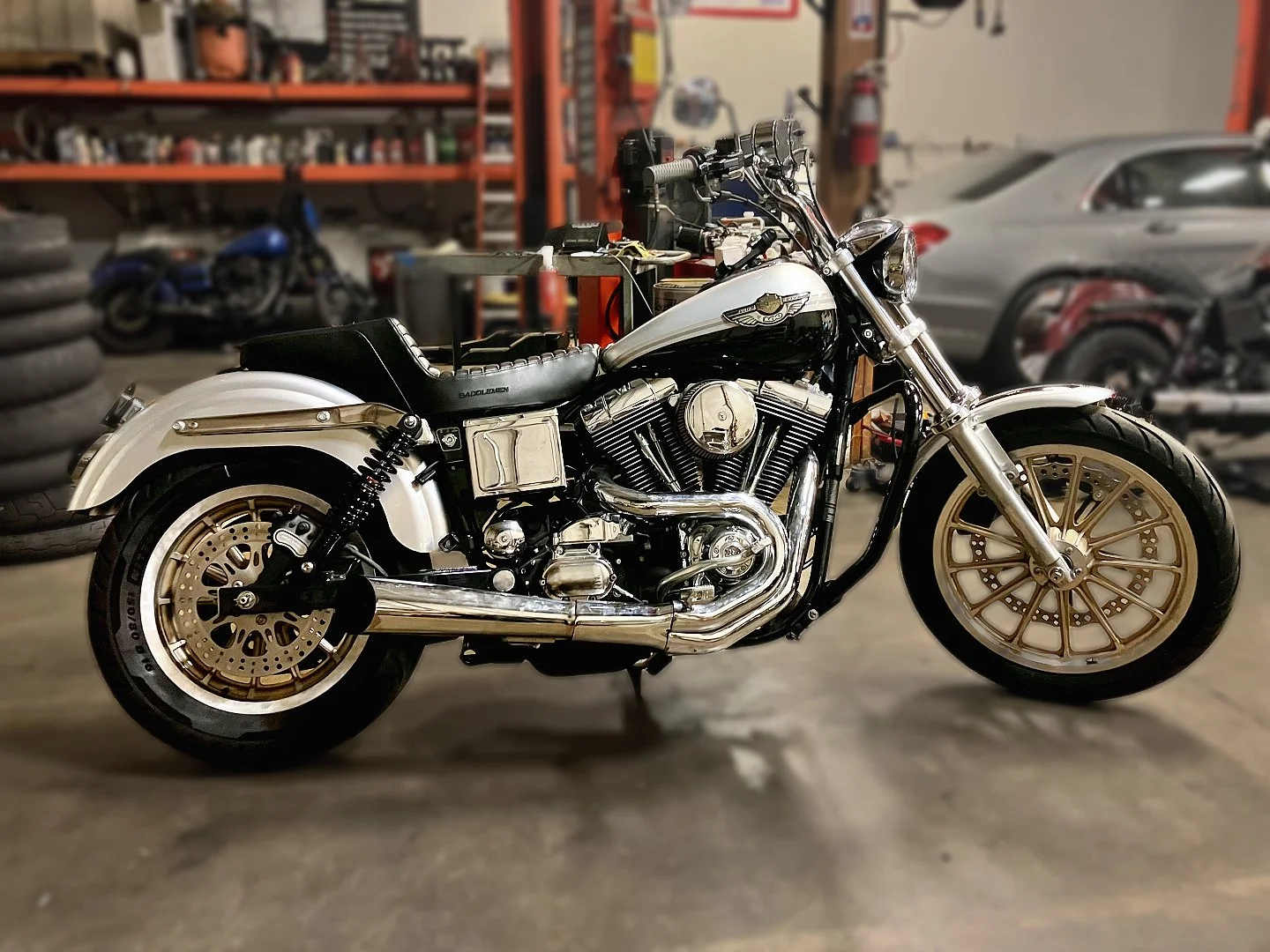

Harley 2003 100 year anniversary Dyna Low Rider
✔️ Custom made exhaust
✔️ New rear suspension
✔️ Front forks rebuilt with new springs
✔️ Arlen Ness 15” big brake kit and Brembo caliper install
✔️ Thrashin Supply internally wired risers, bars, grips, and gauge mount
✔️ Relocate Speedo and tach from tank to bar mounted
✔️ Custom made tank cover with built in phone mount and charger
✔️ Saddleman seat
✔️ Big Sucker intake
✔️ Mikuni carb install and tune
✔️ Crash bar install
-
Harley Davidson Softail
✔️ Front forks Ohlins cartridge install and setup
✔️ Rear Ohlins shock install with riser and frame modifications to fit
✔️ Intake install and tune
✔️ Baja Designs LP4 headlight install and mount
✔️ Riser install with internal wiring and extensions
✔️ Crash bar install
-

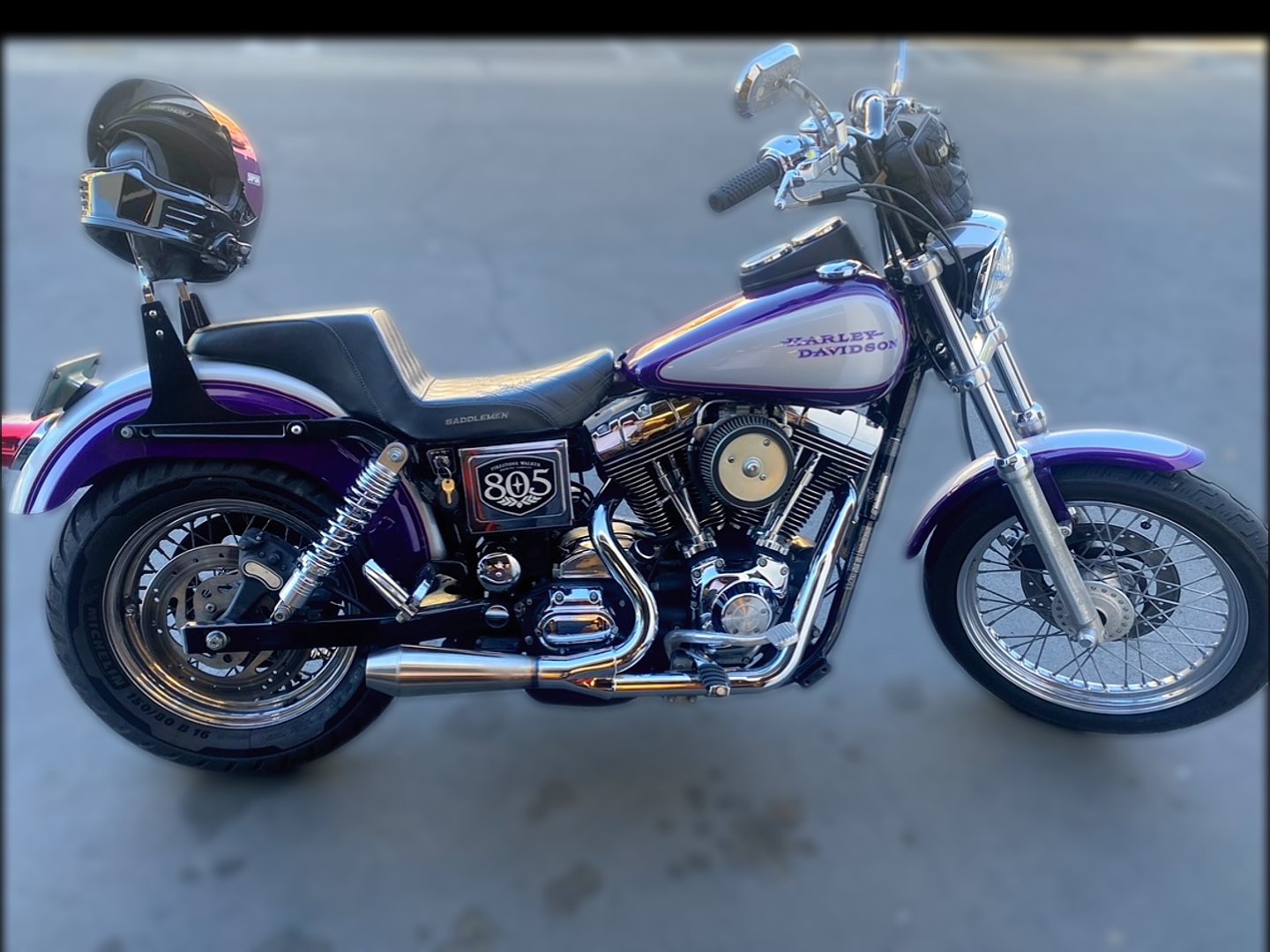

Early Model Harley Davidson Dyna
✔️ full restoration
✔️ custom exhaust
✔️ suspension rebuild in the front
✔️ new shocks in the rear
✔️ carb rebuild and tune
✔️ handlebar install with internal wiring
-

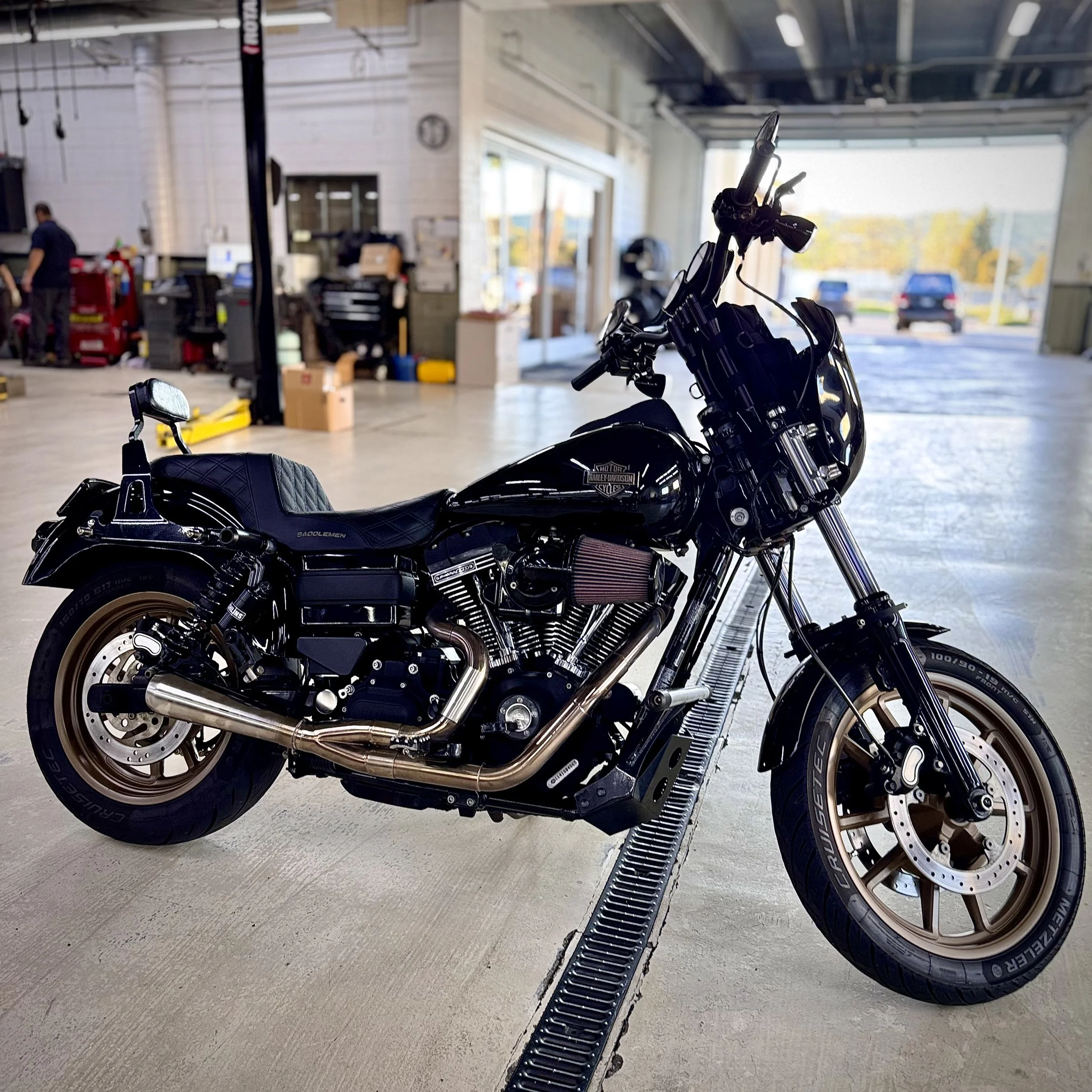

Harley Davidson Softail Low Rider S
✔️ front fork Ohlins cartridges install
✔️ Ohlins rear shock with riser and modified frame for lift
✔️ intake
✔️ exhaust
✔️ grips
✔️ foot pegs
✔️ tune
-
90’s Harley Davidson Softail Classic Springer w/ Sidecar
✔️ Complete restoration of the Softail Springer + matching original sidecar
✔️ Full teardown and rebuild of motor and frame
✔️ Wired, installed, and set up the sidecar
✔️ Tuned and set suspension for both bike and sidecar -

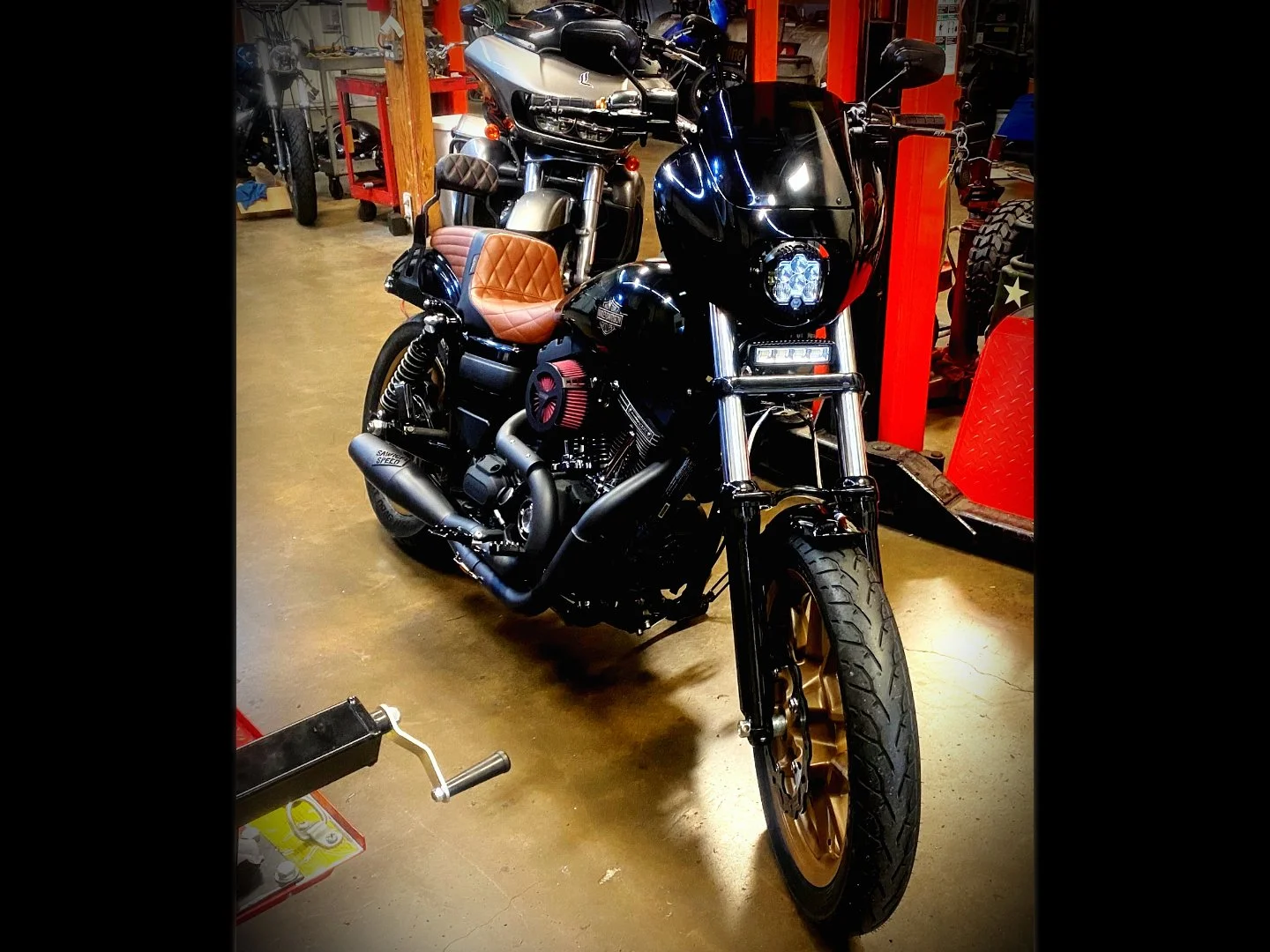

2017 Harley Dyna Low Rider S – complete build
✔️ suspension work and new shocks
✔️ exhaust
✔️ intake
✔️ Fueling Parts cam, cam plate, oil pump, valves and springs, pushrods
✔️ custom LePera seat
✔️ custom LEDs and mounts
✔️ custom mounted and shaped front fairing
✔️ brakes and rotors
✔️ internally wired bars and risers
✔️ Flo levers, pegs, brake and shifter levers
✔️ Dakota digital speedo and custom mount
✔️ kinetic structures motor mounts
✔️ stealth sprocket chain conversion with custom chain tensioner
✔️ Arlen Ness Method fork brace install
-

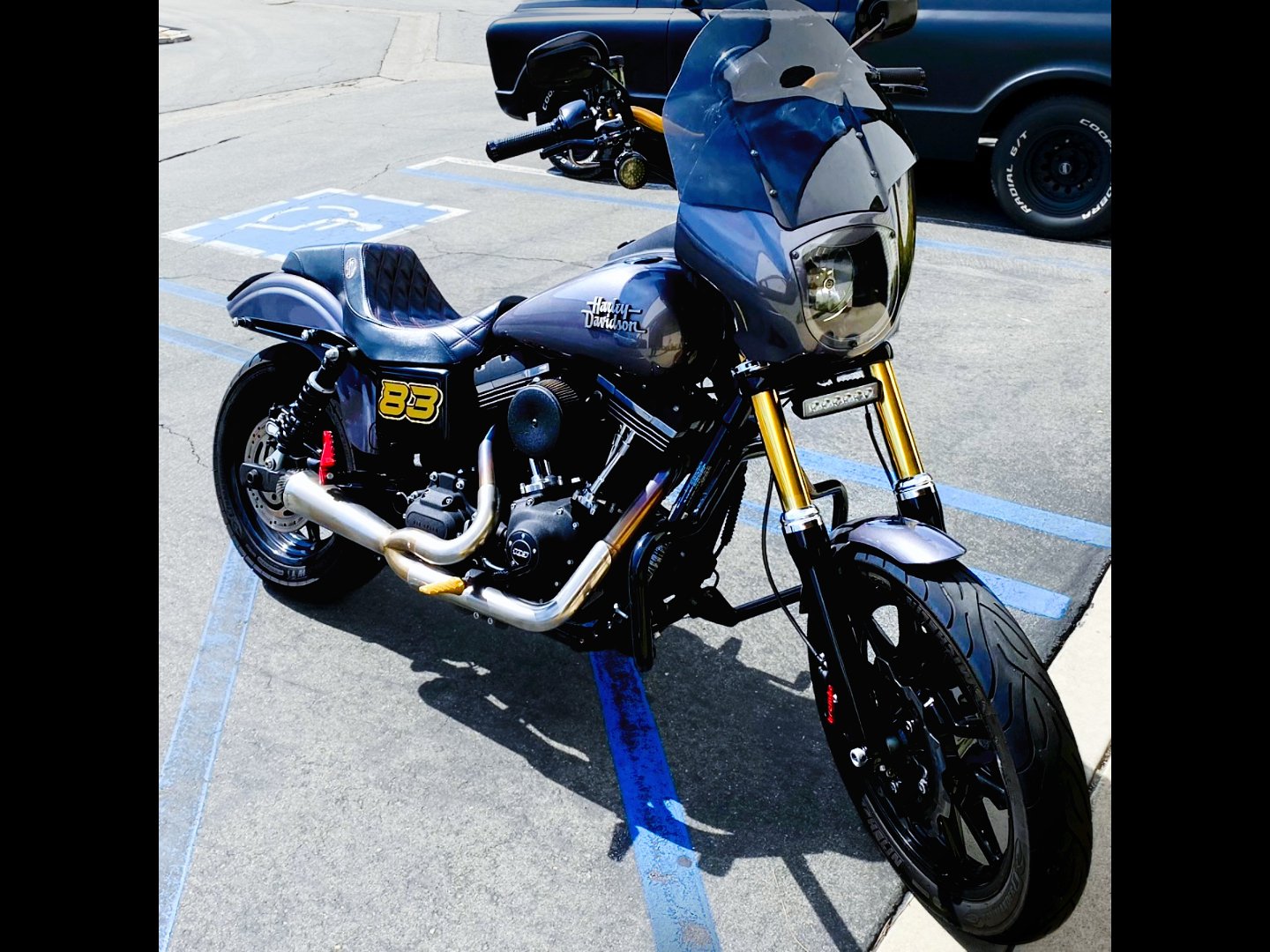

Late-Model Harley Davidson Dyna
✔️ Custom brake setup front and rear
✔️ 2” over gold fork tubes w/ drop-in cartridges
✔️ Custom LED light bar
✔️ Extended windscreen install
✔️ Gold handlebar & riser install
✔️ Crash bar install
✔️ Custom rear plate + signal install & wiring -

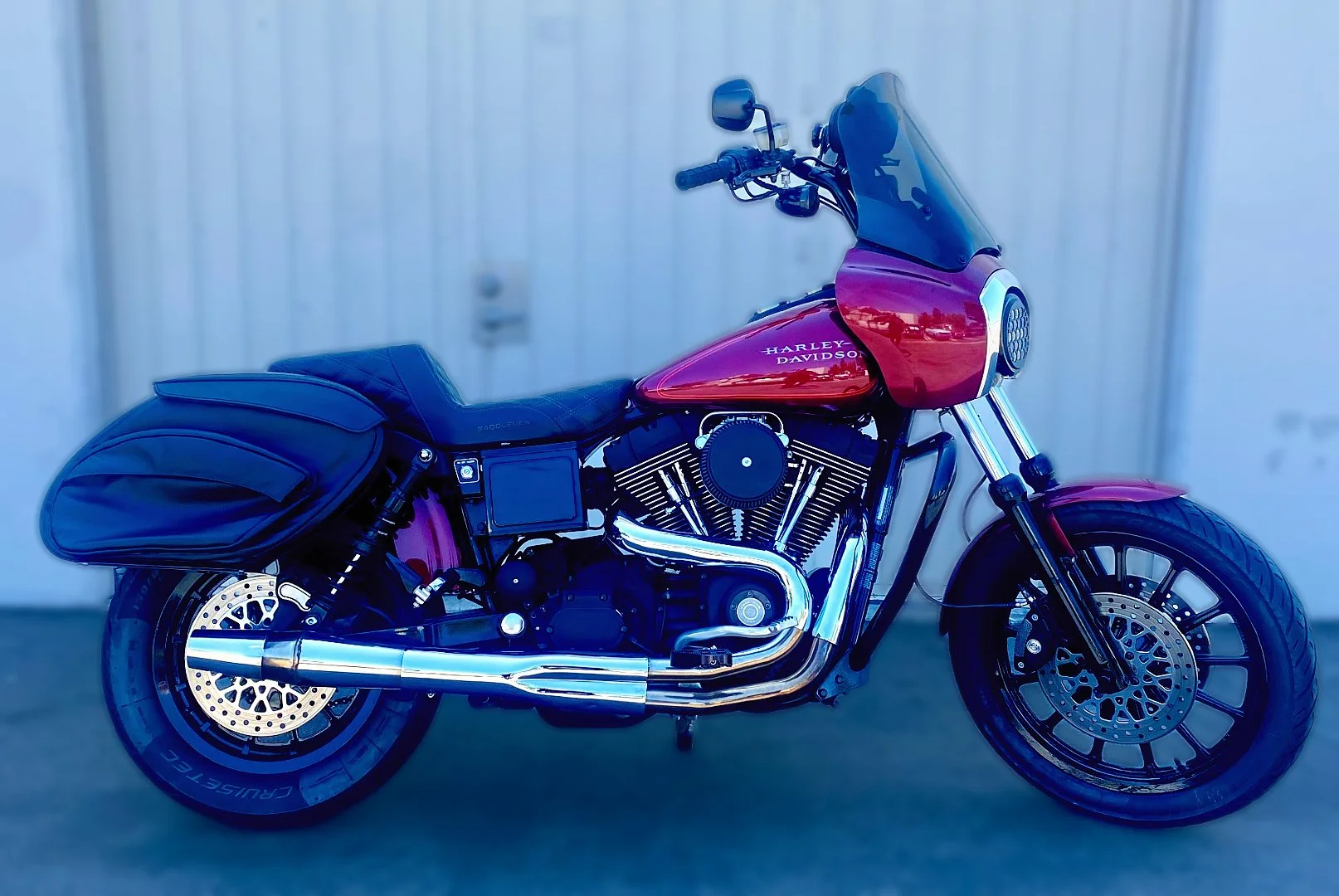

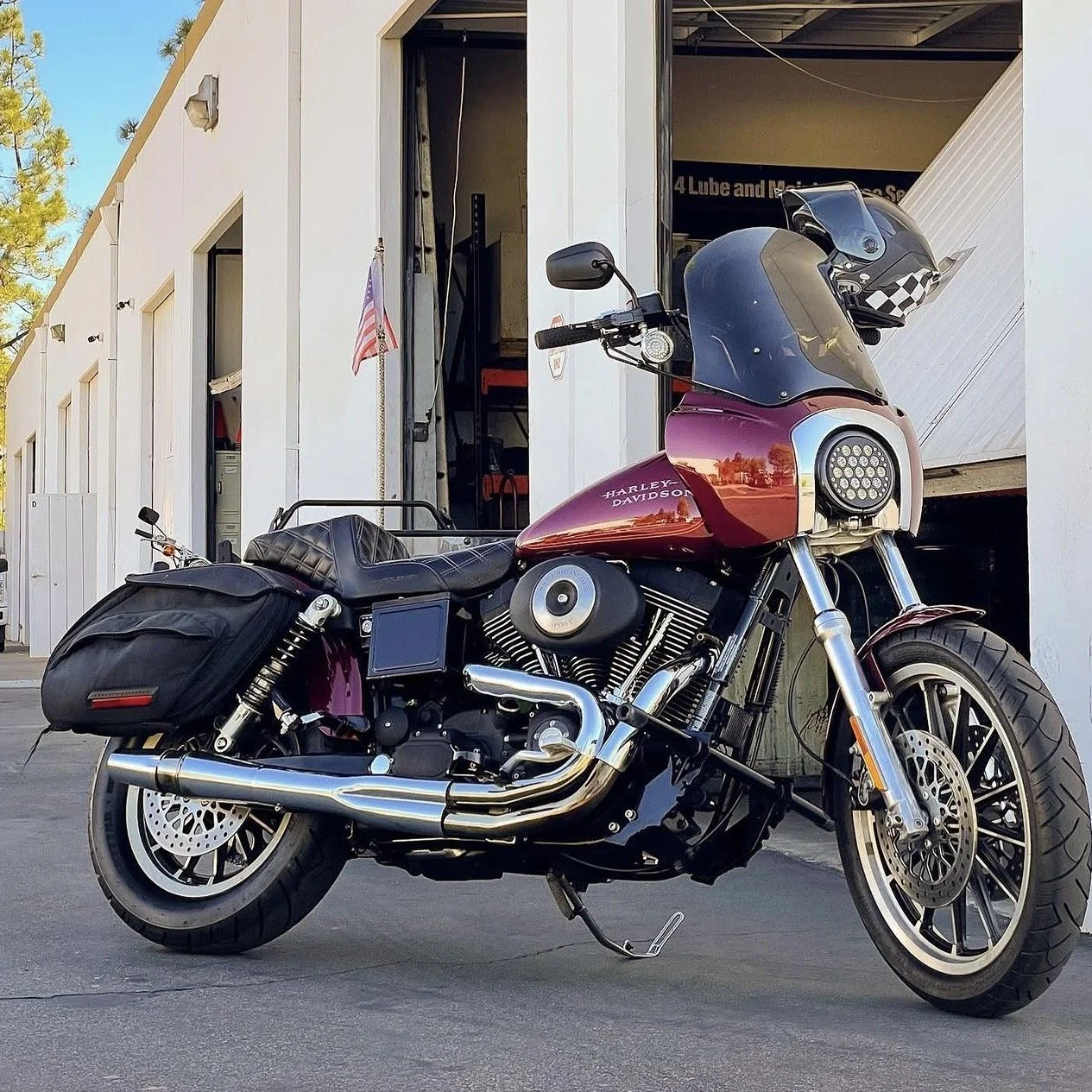

Early-Model Harley Dyna T-Sport
✔️ Full restoration build
✔️ Complete motor teardown & rebuild w/ all new Fueling parts
✔️ Leather Pro bags
✔️ Body and tank work
✔️ Rewired + repaired full electrical system
✔️ Restored & powder-coated hard parts
✔️ New rear suspension
✔️ New brake system
✔️ Rebuilt front suspension w/ drop-in cartridges -

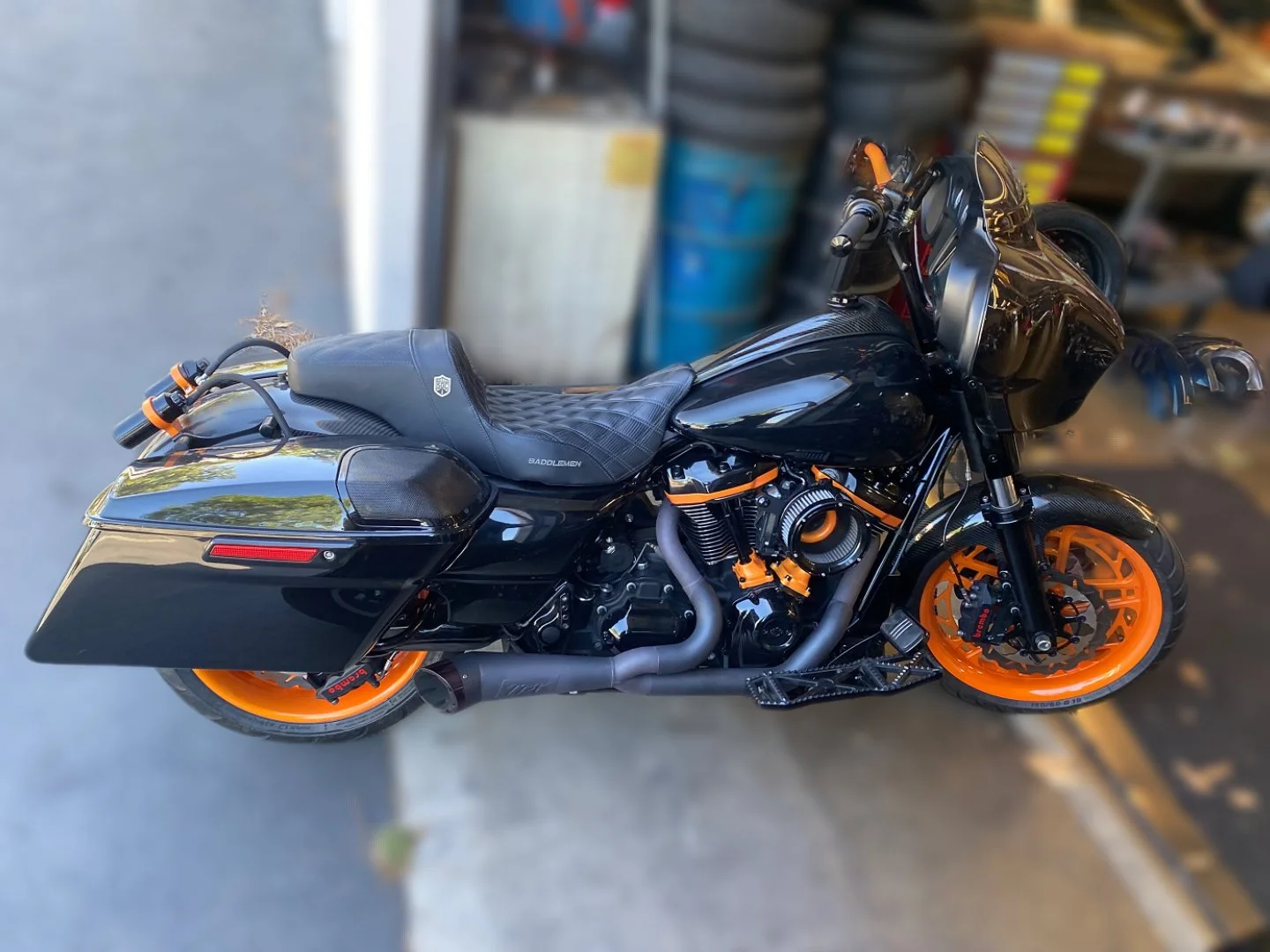

2022 Harley Davidson Street Glide
✔️ Custom Öhlins suspension front and rear
✔️ Custom-cut carbon fiber front & rear fenders by Hoffman Designs
✔️ New full sound system
✔️ Jade Affiliated custom rims w/ Galfer + Brembo brake setup
✔️ Custom paint throughout
✔️ Chain drive conversion
✔️ Motor work and tune
✔️ Handlebars, risers, floorboards & controls swap
✔️ Speedo relocation
